Equipment for Solar and Micro Hydro systems:
Here is a selection of commonly used equipment in Micro Hydro and Solar Power systems. Please call or email for current price. Detailed specifications on performance are available if you care to ask. We do not stock any no-name brand or department store type of products. All equipment shown here is of the highest standard and has stood the test of time.
Please call or e-mail us for current pricing and availability. e-mail: offgrid@homepower.ca
ES&D 'Easy Tune' Hydro Turbine:

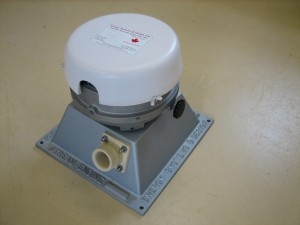

Energy Systems and Design 'Easy Tune Stream Engine'
This is the latest development in ultra high efficiency water power equipment from this innovative design company.
The Easy Tune puts out significantly more power and at a lower speed than the Stream Engine.
Up to 60 amps is standard, given sufficient head and flow. Up to four nozzles, but two are standard permit a wide range of flow to be used.
The key feature is that the unit can be 'tuned' or adjusted while it is in full operation by means of aligning the stator coils for maximum output.
|
|
ES&D Water Buddy Hydro Turbine:
Energy Systems and Design 'Water Buddy Turbne'
Up to 100 watts from a short length of hose ....
Part toy, part equipment, this small turbine weighs only 8 pounds and can be set up in minutes.
|
|
ES&D Water Buddy Turbine:Base:
Bottom view of the Water Buddy, showing turbine runner and spare nozzles.
|
|
ES&D Hydro Turbine:
Energy Systems and Design 'Stream Engine'
These are the very popular hydro turbines which run on heads from 20 feet up to 400 feet. Output is either 12, 24, or 48 volts DC for battery charging. Available in 30 or 60 amp outputs, (48 volt max 30 amps) Quiet operation, self contained and dependable. Comes with 4 interchangeable nozzles, with two mounting holes in turbine.
For use as stand alone power generation at cabins, remote off grid homes, camps etc.
|
|
ES&D Hydro Turbine:
Energy Systems and Design 'Stream Engine'
Bottom view of the 'Stream Engine' water turbine generator.
Because the Stream Engine uses a Turgo Turbine runner, it can accommodate a much greater water flow than an equivalent sized pelton turbine, such as the Harris. In situations where water volume is available, and at low heads, the stream engine will be a better choice. For high head sites with limited flow, consider using the Harris Turbine.
|
|
ES&D Hydro Turbine:
Energy Systems and Design 'LH 1000' propellor turbine
For heads up to 10 feet with a large flow volume. These turbines use the same permanent magnet generator as the Stream Engines. A plastic 'draught tube' or suctin discharge pipe connects to the bottom of the turbine, on the left, and drops down to below water level thus keeping air out of the suction head.
|
|
Harris Hydro Turbine:

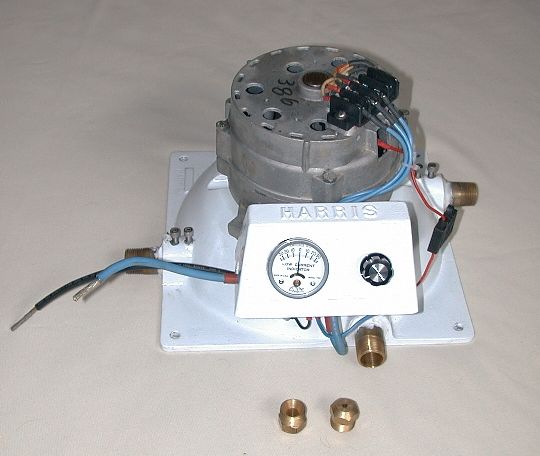

This Harris generators also use a permanent magnet generator. Shown here is a unit with an automotive alternator installed. These are no longer available as the efficiency with the permanent magnet generator is much better.
For use as stand alone power generation at cabins, remote off grid homes, camps etc.
|
|
Harris Hydro Turbines:
Bottom view of the Harris Turbine, showing the four inch diameter Pelton runner. Up to four nozzles can be used at the same time. For very low flows and high heads this is a good choice.
Use as you would an ES&D turbine, for stand alone power generation at cabins, remote off grid homes, camps etc.
|
|
Induction Turbine Generator:
This is a special kind of generator. It uses a high voltage induction motor as the generator. This permits long distance transmission of the electrical energy. Distances of up to thousands of feet are possible, and voltages up to 240 volts, three phase. A special controller is required together with transformers. The power is then stepped down to battery voltage, and then handled the same way as with a Harris or ES&D unit.
|
|
Older Modules:
While the trend is for much larger 400 to 500 watt modules, we still have some hard to find low power modules. We still have some old Kyocera modules in stock from 60 to 80 watts as well as older Sharp and Siemens 75 watt.
Other sizes available, call for quote.
|
|

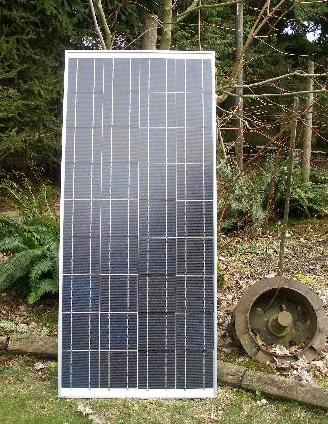

Various modules:
300 to 370 watt modules shown here. Longi bifacial modules up to 545 watts are now the standard size for large arrays.
For direct grid tie applications, the current trend is to use the Enphase DC to AC inverters on each module. Grid tie with no batteries and no single large inverter is now possible.
|
|
Other smaller modules:
High effiency multicrystal modules available in sizes from 10 to 30 watts.
Shown here is a British Petrolium 20 watt module. Suitable for SCADA telemetry systems or other applications where the power demand is low.
Ideal for maintaining a single car battery or for a demonstration setup.
|
|
Controls:
Morningstar is a leader in advanced PWM solar charge controls.

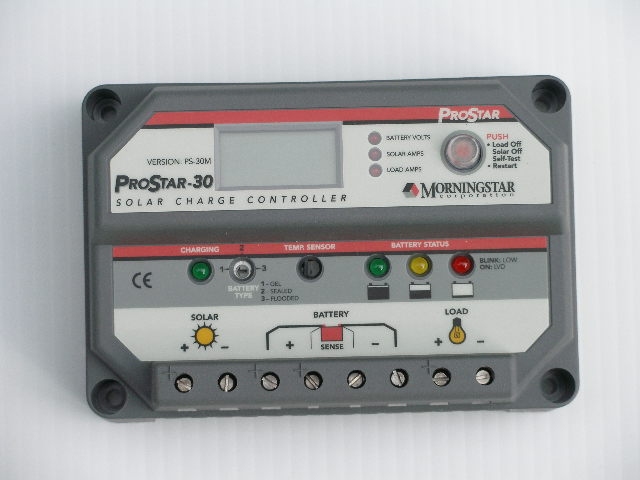

Shown here is a Morningstar ProStar PWM controller with meter.
Rated for 30 Amp 12 volt, but you should not exceed 25 amps in actual use.
|
|
Controls:
The C-60 and C-40 are PWM charge controlers for solar or micro hydro applications. I have used lots of these units and all are still working well. They can be set as diversion controllers for micro hydro use, or as load controllers, to shut of loads if the battery gets too low.
C-60, good for up to 48 amps, 12, 24 volts: -------- 225.00
C-40, good for up to 30 amps: 12, 24, 48 volt:-------- 195.00
|
|
Inverters:
Sine Wave models. The SW series is regretabely being phased out. They are rated up to 4000 watts and produce excellent power.
The XW series is for grid intertie and has similar speecs as the SW series.
SW 4024, SW 2524
XW 4024,
|
|
Inverters:
DR series of modified sine (square) wave inverters. These have been around for ages and are extremely rugged and reliable. They are still available, but the pure sine wave inverters are now the norm, costing less than the modified sine wave units did in the 1900's. The DR series are replaced by the newer TR series.
DR 1512 DR 1524
DR 2412 DR 2412
DR 3624
|
|
Outback Power Systems:
Outback inverters are sine wave types. They are the latest generation in inverters and are built by some of the same people that were once Trace Engineering.
VFX inverters are not sealed and are also ventilated with a fan. They are typically used in homes and indoor areas.
FX inverters have a fan to force air over cooling fins and are totally sealed units. They are designed for humid areas.
|
|
Prosine / Xantrex
Pure sine wave inverters in sizes up to 3000 watts.
We do not deal with the cheep department store type inverters.
|
|
Fuses and breakers:
Class R fuses, DC rated with holders. In the 20 dollar range with holder.
20 Amp, : 30 Amp : 40 Amp, : 50 Amp : 60 Amp
Class 'T' main battery fuses in the 25 to 40 dollar range.
150 Amp : 200 Amp : 250 Amp : 300 Amp
Call for pricing
|
|
Main safety disconnect DC breaker:
This is a DC safety breaker in a large enclosure. Use it to feed the inverter from the battery bank. The enclosure is large enough to house the meter shunt, additional fuses and has knockouts specifically for DC breakers from 20 to 60 amps to additional inputs and outputs. This breaker adds a degree of safety to any hydro or solar system and is is strongly advised to be included in all systems.
|
|
Meters:
Trimetric 2020 Multi function meter with LED display.
Comes with suitable shunt which goes on main battery negative cable.
Price with shunt $ 240
|
|
Batteries:
Lithium Iron Phosphate batteries are the newest technology offering long life and best safety.
Pictured are Simpliphi 3.8 kWh, 48 volt batteries. Most batteries are available in 12, 24 and 48 volt. Capacities range up to 300 amp hour per battery at 12 volt. Best for use on solar sites where charge time is limited.
|
|
Batteries:
Lithium Iron Phosphate batteries are the newest technology offering long life and best safety.
Pictured are Canbat 3.6 kWh, 150 Ah, 24 volt batteries. These batteries are available in 12 and 24 volt. Lithium is best for use on solar sites where charge time is limited. Not always recommended for micro hydro sites.
|
|
Coanda Screens:
The best water screen for any intake system. Use for domestic water or hydro or irrigation. this simple stainless steel screen will elliminate debris from entering the pipeline and the screen is virtually self cleaning requiring little or no cleaning for months at a time. I have installed a number of these all with fantastic results. Expensive, but worth every dollar.
|
|
Electronic load control governor:
This is the famous mini governor made by THES and for use on hydro turbines to 10 kW in capacity. Incrediably reliable and accurate, this will maintain the RPM and frequency of a hydro power system to within seconds a day. Larger units available, as well as load managers, which effectively enable one to connect more load to a generator than its capacity.
|
|
Fused Disconnects:
Used on AC sustems as a main disconnect between the generator and the load center.
Available in sizes up to 100 amps at 120 / 240 volts. these should be followed with a load center consisting of breakers from 15 to 30 amps.
|
|
Diversion Loads:
This is an air diversion load suitable for micro hydro, wind or wind applications. Unit has four large reisitors inside, configurable as a 4, 1, or 0.5 ohm load.
It is used in conjunction with the C 60 or C 40 load controller shown above, or the Tristar diversion controller. Used for 12, 24 or 48 volts. Available in 40 or 60 amp models, but it is best to limit the current to no more than 60 % of the rated capacity.
|
|
Water heater element:
This is a water element diversion load suitable for micro hydro, solar or wind applications. It has a one inch pipe thread the same as a regular 240 volt screw in water tank element.
It is used in conjunction with the C series load controllers shown above, or the Tristar diversion controller. Use it for 12, 24 or 48 volts systems. Current draw will depend on system voltage. The dual element can be set in series or parallel or used individually. Available in 1.2 or 2.4 ohm models.
|
|
Power Panels:
This is a fully made up power panel.
|
|
Power Panels:
This is a fully made up power panel using an outback FX3524 inverter, Midnight E-panel, Surrett S600 batteries, C 60 charge controller, and an outback FX 60 solar charge controller (for future use). A 30 amp AC distribution breaker panel is ready to connect to.
|
|
Power Panels:
Custom power panel showing most of the hook up equipment.
|
|
Please call or e-mail us for current pricing and availability.
| |
